Advanced ggploting

Data is a portion of a parts list for a custom Lego build. Originally designed and data generated on stud.io

‘Part’ -> ID number for that piece

‘Color’ -> Lego color code

‘Quantity’-> number of x piece in x color

‘LEGO.COM’-> Price per piece on lego.com

lego <- read.csv("rebrickable_parts_moc-dragon.csv")

> str(lego)
'data.frame':   248 obs. of  5 variables:
 $ Part    : chr  "11089" "87747" "53451" "30374" ...
 $ Color   : int  0 0 0 0 0 0 0 0 0 0 ...
 $ Quantity: int  1 45 15 1 3 6 2 9 2 1 ...
 $ Is.Spare: logi  FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ LEGO.COM: num  0.29 0.09 NA NA NA 0.08 0.12 NA 0.1 0.1 ...

Colors for plots correspond to the published hex codes from Lego.com

tabled_data2 <- as.data.frame(table(Color=lego$Color))

my_cols <- c("#05131D", "#0055BF", "#237841", "#C91A09", "#9BA19D", "#FFFFFF", "#E4CD9E", "#958A73", "#FF800D", "#582A12", "#A0A5A9", "#6C6E68", "#F6D7B3", "#FFF03A", "#352100", "#720E0F")

Plot 1: Waffle Plot

Distribution of colors in the set

waffle <- ggplot(data=tabled_data2,
  aes(fill = Color, values = Freq)) +
  waffle::geom_waffle(n_rows = 8,
                      size = 0.33,
                      colour = "white") +
  scale_fill_manual(name = "Color Code",
                    values = my_cols)+
  coord_equal() +
  theme_void()
waffle

Plot 2: Tree Plot

treemap(dtf=tabled_data2, index="Color", vSize="Freq", type="index", palette= my_cols, title = " Frequency of Brick Colors in Lego MOC *Numeric values corrispond to Lego color codes"

Plot 3: Parallel Coordinates plot

PiecePrice <- GGally::ggparcoord(data=no_na,
                         columns = c(3,5), # c(3,5,8,9)
                         groupColumn = 1,
                         title = "Quantity of Part Required Vs. Price per Piece")

Plot 4: Lollipop Plot

Restructure data and assign colors

# Isolate the top five colors in set
top5 <- tabled_data2 %>%
  arrange(desc(Freq)) %>%
  slice(1:5)

# Assign names to color codes
color_names <- c(
  "0" = "Black",
  "70" = "Reddish Brown",
  "71" = "Light Bluish Gray",
  "72" = "Dark Bluish Gray",
  "308" = "Dark Brown"
)

# Replace code with color name
top5 <- top5 %>%
  mutate(Color = recode(as.character(Color), !!!color_names))

# Assign correct hex codes (from LEGO.com)
my_cols <- c("#05131D", "#582A12", "#A0A5A9", "#6C6E68", "#352100")

Create plot

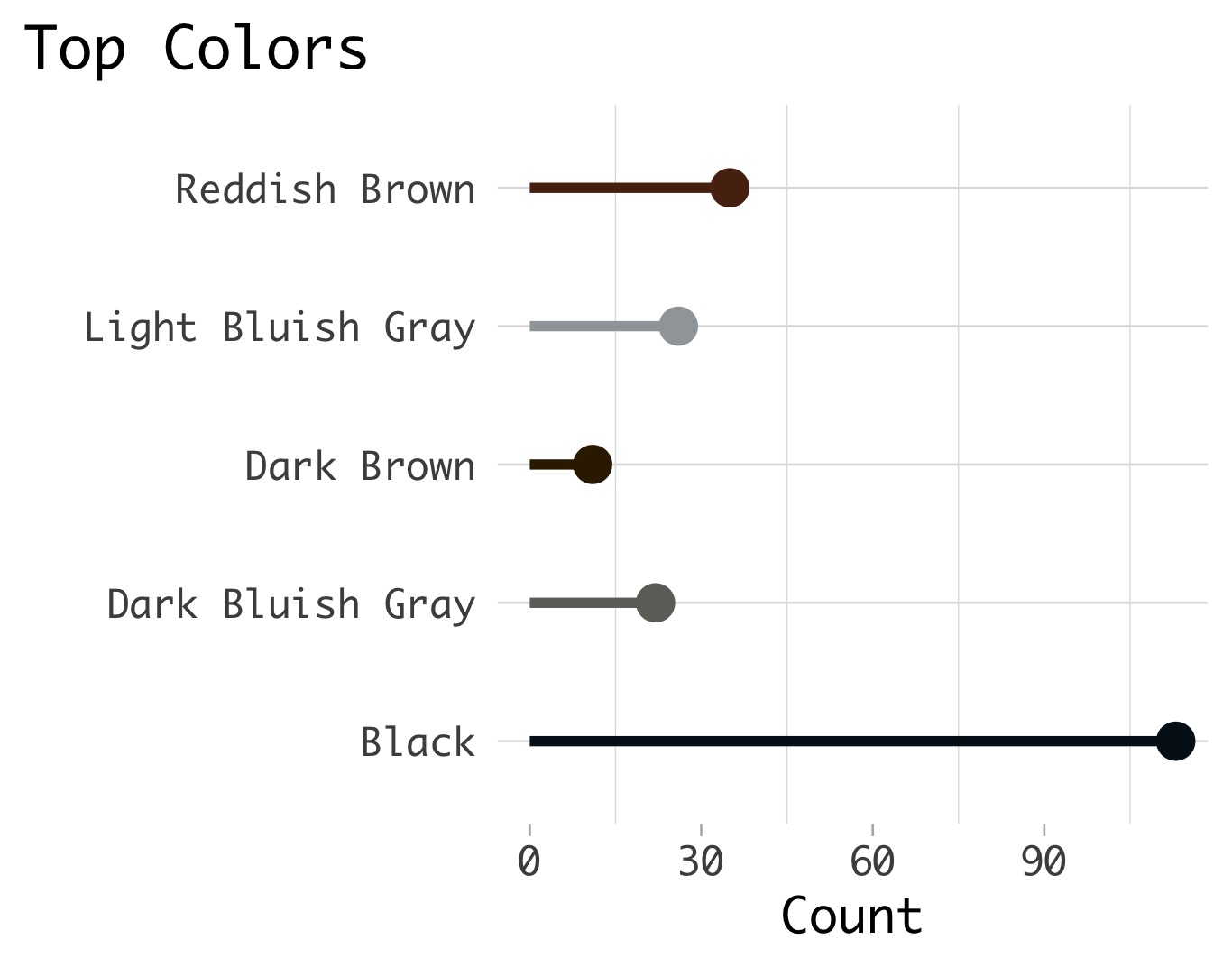

lolli_colors <- ggplot(data=top5) +
  aes(x=Color, y=Freq) +
  geom_segment(aes(x=Color,
                   xend=Color, y=0,
                   yend=Freq),
               color=my_cols,
               linewidth=2) +
  geom_point( color=my_cols, size=7) +
  labs(title="Top Colors",
       x="",
       y="Count") +
  coord_flip() +
  theme_light(base_size=20,base_family=
                "Monaco") +
  theme(
    panel.grid.major.x = element_blank(),
    panel.border = element_blank(),
    axis.ticks.y = element_blank(),
    plot.title.position = "plot",
    plot.title = element_text(hjust = 0))
lolli_colors
